One of the things I’ve always wanted to do is to work on an image in a 3D environment but then export the resultant image to an svg. Being the open source nut that I am my main weapons of choice are Blender for 3D work and Inkscape for vector. These programs have their advantages and their disadvantages. The main advantage they have over many similar programs is that they’re open source and free. They’re very capable products and are used quite widely and are being actively developed. In fact, Inkscape is getting ready to release version 0.47 (I’ve used a prerelease and it’s awesome)
For my task of exporting 3D models to SVG Blender falls slightly short because it doesn’t natively support this. There are a few plugins that have attempted to offer this and do well, but sometimes crash or give unexpected output. That, and for some users going through the hassle of finding the plugin might be too much.
The disadvantage Inkscape has is it’s handling of lots of nodes. The moment you hit around 10,000 nodes the program begins to noticeably slow down. For most simple logo work this isn’t a problem, but when you come to illustration and highly detailed artwork it gets in the way. This was the main thing stopping me from using the SVG that can be generated from Blender. To test it yourself, import an SVG into Blender and then export it as an SVG using either Pantograph or VRM. You’ll notice that it is now made up of about several hundred smaller shapes.
This makes colouring or modifying the shape really hard. Sometimes, in Inkscape you can just highlight all of the shapes, go to Path > Union (Ctrl + Shift + +) to combine them all but sometimes it makes it all disappear.
Luckily there is a technique to get this to work. If you import an SVG be sure to apply the
Ninja Decimate modifier to the shape and drag the Ratio slider down (thanks to heathenx for this tip). Please note that this only work if you shape is a mesh, so hit Alt + C and convert your shape to a mesh.

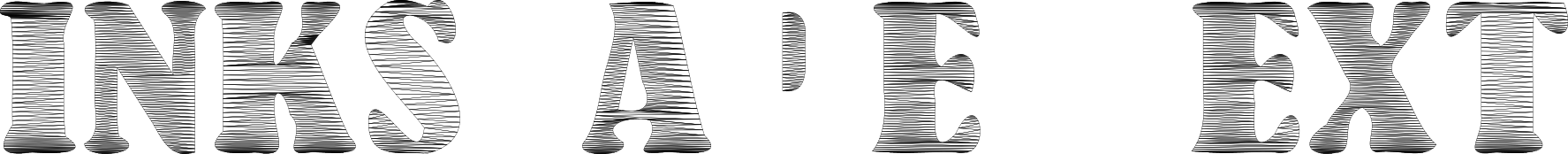

If you’re working with text you may notice that after you’ve applied the Decimate modifier and dragged the slider down all of your text looks… crap.
This is because the modifier is treating the text as a whole shape and thus reducing the face count of the whole combine shape rather than treating each character as an individual shape. You need to separate them. To do this, in Edit mode (hit TAB to get there) hit P (don’t do this in normal mode. It runs the Blender game engine and will most likely crash Blender).

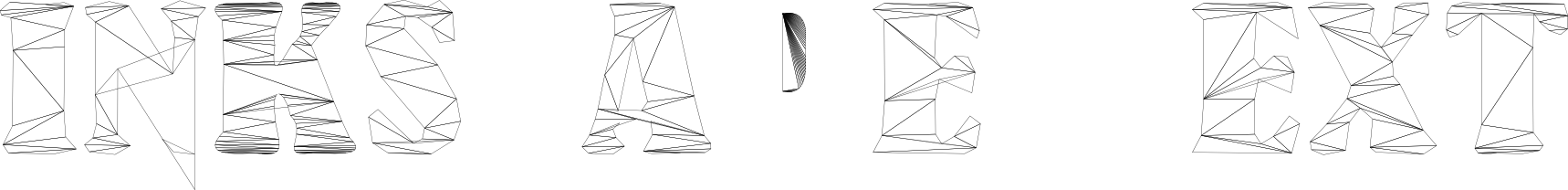

From the Separate menu choose All Loose Parts and now each character is an individual shape. Now, if you run the Decimate modifier on each individual character you have a lot more control over its final appearance.

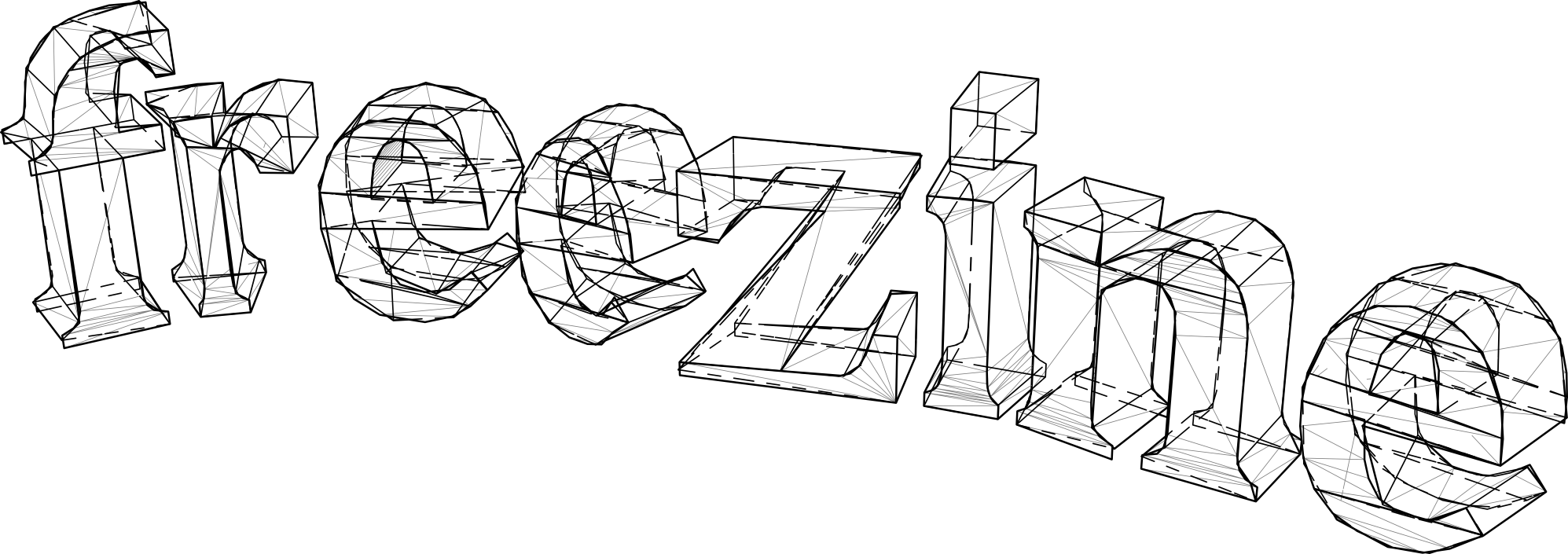

I exported the text to an SVG using VRM but you can do so using that script, Pantograph or the 3D Polyhedron extension in the Render extension menu in Inkscape. Here’s another render showing exactly why you might want to go through this procedure:
The Decimate modifier has its limits. Where a human would simply combine two big triangular faces into a rectangle the modifier sometimes misses this and just over-complicates things and sometimes completely destroys a shape. This is where I ask the Blender community for assistance. Is there a script to easily reduce the face count of an object?
I think native SVG export is something that Blender should work towards in the future. There’s just too many possibilities and opportunities!
